This kind of FKM sheet has flat and bright surface, small thickness tolerance and good physical properties. The breakdown voltage tested is more than 10.2 KV/mm. It shows excellent resistance to heat, oil and strong acid or alkaline. Maximum width is 1.5 meter and smallest thickness is 0.5 mm.

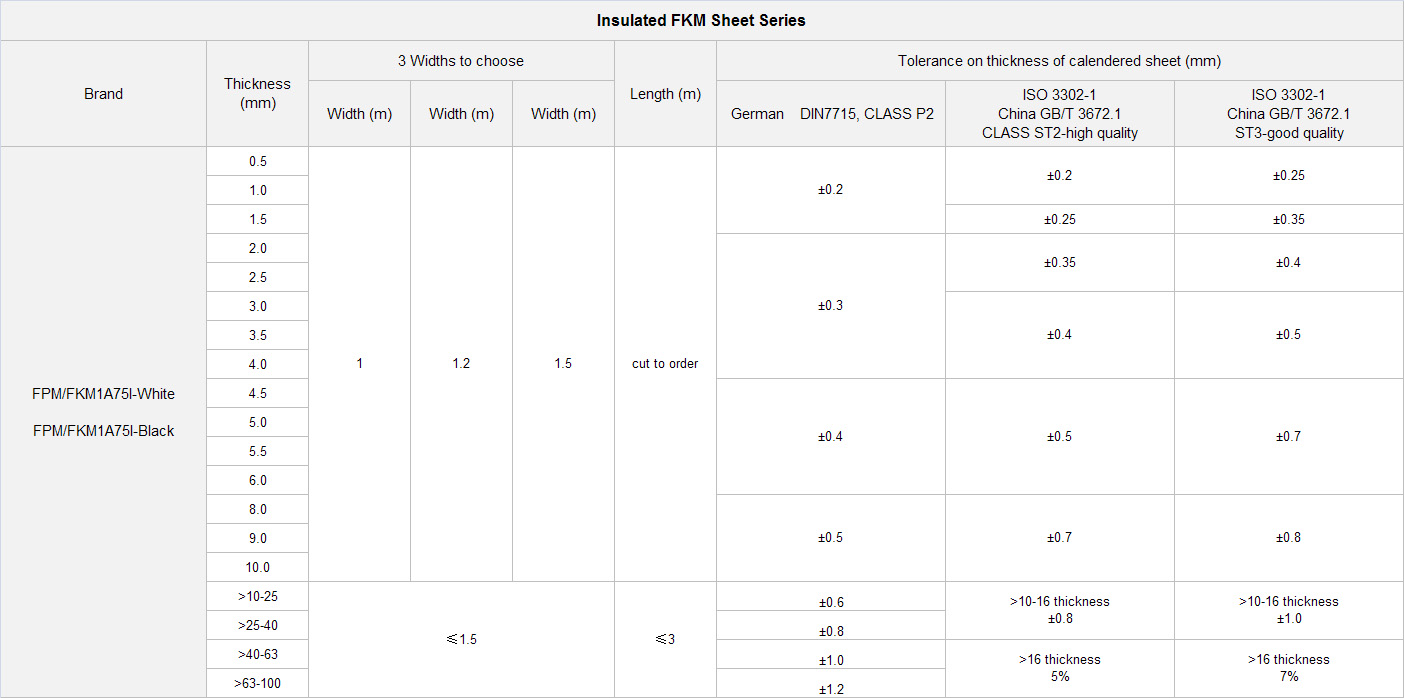

Size and Package available：
Size of square or rectangle flat sheet piece: max width 1500mm, thickness range 11-100mm)
Roll size: max width 1500mm, thickness range 0.5-10mm, no limit to length, can be cut to order.
Product Advantage：
Resist to heat, oil, acid or alkaline etc.. Good insulation performance.
Manufacturing Process：
Square or rectangle flat sheets are moulded by 4000 ton flat vulcanizing press, rolls are vulcanized by drum-type vulcanizing press.
Color：
Black and White. The insulation performance of white sheet is better than black ones.
Color inquiry of existing FKM product or new color development per Technical Support.
Brand Explanation：
For example：FPM/FKM1A70-Black
FKM：per ASTM D1418, general designation to fluoroelastomer (per DIN/ISO, the name is FPM)
1A-High quality; 70-Hardness Shore A, I-Insulation
